Overview

Bonis round top load kilns for firing ceramics are high quality professional equipment that fully meets the requirements of the modern studios.
Made from high quality raw materials ,produced by the best European companies, for guaranteed performance and long life span.
Their multilayer insulation combined with the high insulating capacity of the materials used, ensure high energy saving, and slow cooling rates.
The combination of our unique multi layer insulation together with the appropriate power of the heating elements, ensure that the furnace will operate at very high temperatures (up to 1300C), at very fast heating rates.

Features

Frame

The frame of the kiln is made by stainless steel.
All kilns come with a steel frame base which can optionally carry wheels.

Thermal Insulation

Multilayer insulation with total thickness of 13cm, consisting of special light weighted insulating firebricks (IFB), Grade 25, thickness 7.6cm, classification temperature 1350C, and two layers of non hazardous, low biopersistent Cerablanket, density 128kg / m3 with total thickness 5cm.
Multi-layer insulation offers great energy savings.

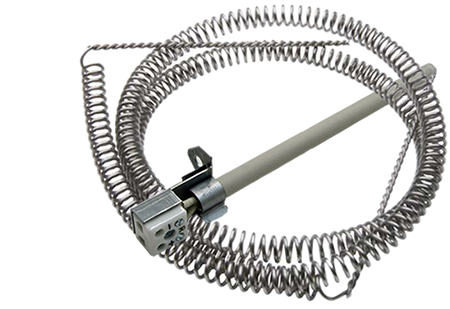

Heating Elements

Heating elements are made by Kanthal class A1 wire, able to withstand up to 1340C.
They are mounted in specially designed grooves, and are fully protected.
Heating elements are designed in zones. In this way we take advantage of the natural potential of heat, achieve lower energy consumption, and ensure temperature uniformity throughout the furnace.

Thermocouples

Kilns are equipped with an S type thermocouple (for maximum temperature 1300C), or K type thermocouple (for maximum temperature 1200C and 1250C)

Control Panel

The electric panel is constructed from stainless steel. It is equipped with all the necessary indication lights, switches and the conductors needed to connect the kiln to the main power supply.

Lid Support

All kilns feature a three position lid support. Lateral support provides great security, while less stress is transferred on the kilns frame.
The third mounting position allows to open for a few centimeters, for rapid cooling of the furnace.

Disassembly

All kilns are easily dismantled without the need to use any specialized tools.
Kilns are made in such a way that the disassembly of the electrical or electronic components is not required.
This makes it very easy to transport the kiln, and to place it in areas with limited accesibility (the minimum door opening required is 45cm)

Optional Features

Silent operation.

Heating elements on the floor.

Handle with lock on the lid.

Ventilation system.

Wheels on the metallic support.

Temperature Control

Kiln models with internal height up to 58cm, feature a single zone temperature control system. These kilns are equipped with the controller ST 215.
Kiln with internal height 69cm can be upgraded to a a multi-zone temperature control system.
The multi-zone temperature control system features three thermocouples and the temperature control is carried out in three different zones (upper zone, middle zone, bottom zone).
In kilns of large internal height, our multi-zone temperature control ensures complete temperature uniformity throughout the kiln, regardless of uneven ceramic loading, heating element condition, etc.
Multizone temperature control kilns are equipped with the ST535 controller.

Both controllers are easy and practical to use, and they are equipped with the most advanced features. The state of the art technology used to manufacture the controllers and high quality performance, guarantees safe firing and precise temperature control. Controllers are detachable and can be easily detached from the kiln for use in another kiln, or to be stored.

Both controller features:
- 32 programms each with 32 segments
- Free segment programming
- Segment comprises of 1 heating / cooling ramp followed by a soak period
- Segment is programmed as target temperature and ramp rate (C or F per hour)
- Ramp rate from 1 to 999/hour and Full power
- Programs can be altered while firing
- Program pause while firing (dwell / soak during pause)
- Program advance facilities (Skip Segment)
- Keyboard Lock
- Delayed Start facility (up to 99 hours 59 mins)
- Power failure recovery
- Energy used display (even during running a program, it will display the energy used up to this point)
- Set point display
- C / F operation

Optionaly, both controllers can have the capability to be accessed and controlled remotely from your mobile, laptop or tablet.
Using 'MyKiln" portal site you can view and control your kiln in real time. You can Stop a firing or adjust programs, from anywhere in the world.
WiFi enabled controllers feature also a USB port that allows you to directly control it from a PC and it also allows us to apply updates and run diagnostics from distance

Learn more about the Wifi option

Dimensions

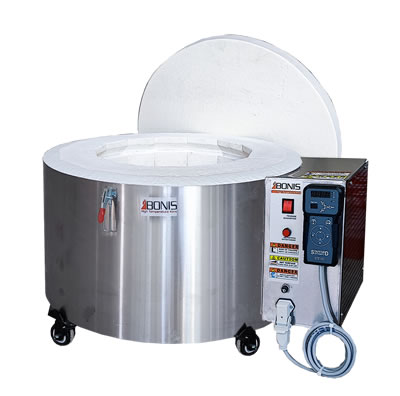

Type MK20

Int. Dimensions:
Diameter 35 cm X Height 23 cm
Volume: 22 Litres
Weight: 50 Kgs

Maximum Temperature:
1200C - Model: MK20L
1250C - Model: MK20M
1300C - Model: MK20H

Delivery time: 2 weeks

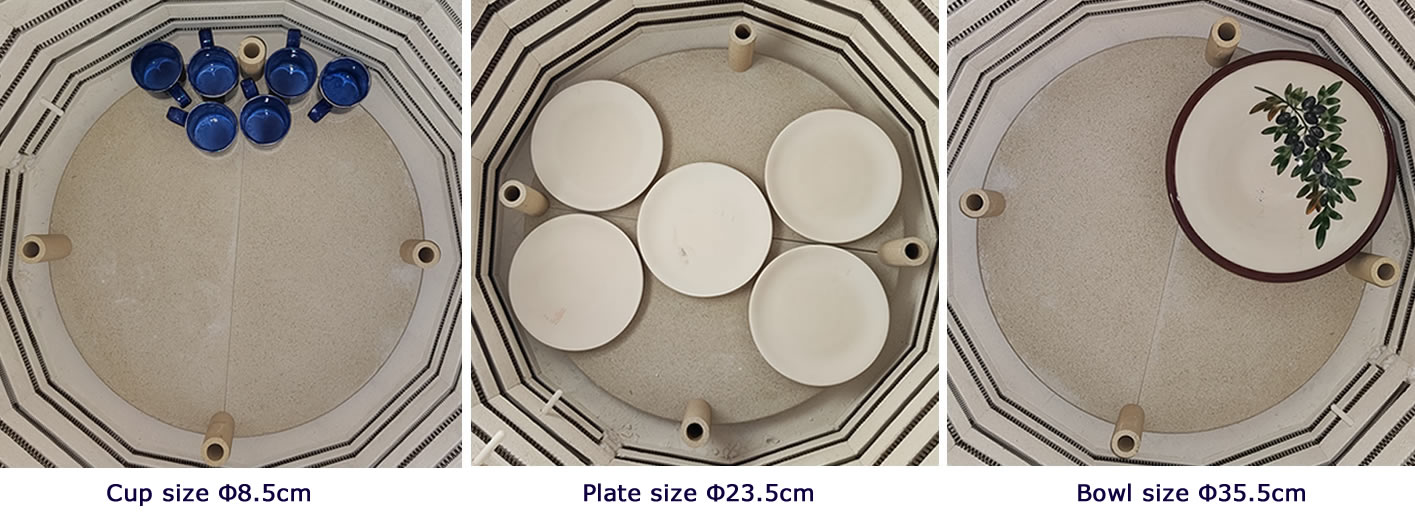

Capacity:
Kiln shelf: ⬤◖ Diam. 30cm
Useful height: 20 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK20L	1200	2 kW	1 phase	10A	Schuko plug
MK20M	1250	2.5 kW	1 phase	10A	Schuko plug
MK20H	1300	2.5 kW	1 phase	10A	Schuko plug

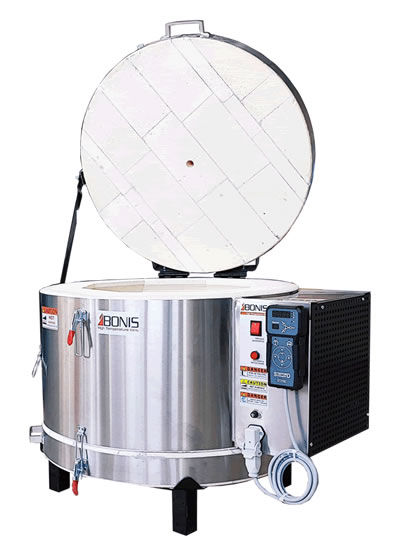

Type MK45

Int. Dimensions:
Diameter 40 cm X Height 34 cm
Volume: 43 Litres
Weight: 60 Kgs

Maximum Temperature:
1200C - Model: MK45L
1250C - Model: MK45M
1300C - Model: MK45H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ⬤◖ Diam. 35cm
Useful height: 31 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

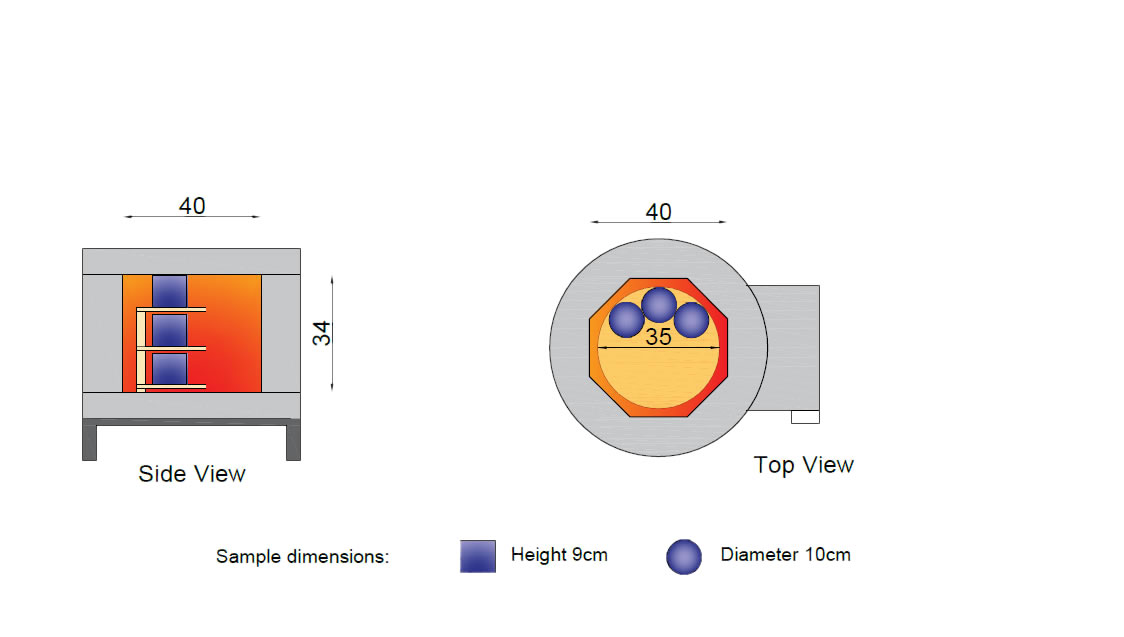

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK45L	1200	3.4 kW	1 phase	16A	schuko plug
MK45L	1200	3.4 kW	2 phases	10 A	220 2P+N+E 10A
MK45M	1250	4.5 kW	1 phase	16A	schuko plug
MK45M	1250	4.5 kW	2 phases	10 A	220 2P+N+E 10A
MK45H	1300	4.5 kW	1 phase	25A	220 1P+N+E 25A
MK45H	1300	4.5 kW	2 phases	16 A	220 2P+N+E 16A

Type MK60

Int. Dimensions:
Diameter 40 cm X Height 46 cm
Volume: 58 Litres
Weight: 80 Kgs

Maximum Temperature:
1200C - Model: MK60L
1250C - Model: MK60M
1300C - Model: MK60H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ⬤◖ Diam. 35cm
Useful height: 43 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK60L	1200	4.5 kW	1 phase	25A	220 1P+N+E 25A
MK60L	1200	4.5 kW	3 phases	10 A	220 3P+N+E 10A
MK60M	1250	5.5 kW	1 phase	35A	220 1P+N+E 35A
MK60M	1250	5.5 kW	3 phases	16 A	220 3P+N+E 16A
MK60H	1300	5.5 kW	1 phase	35A	220 1P+N+E 35A
MK60H	1300	5.5 kW	3 phases	16 A	220 3P+N+E 16A

Type MK80

Int. Dimensions:
Diameter 47 cm X Height 46 cm
Volume: 80 Litres
Weight: 100 Kgs

Maximum Temperature:
1200C - Model: MK80L
1250C - Model: MK80M
1300C - Model: MK80H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ⬤◖ Diam. 42cm
Useful height: 43 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

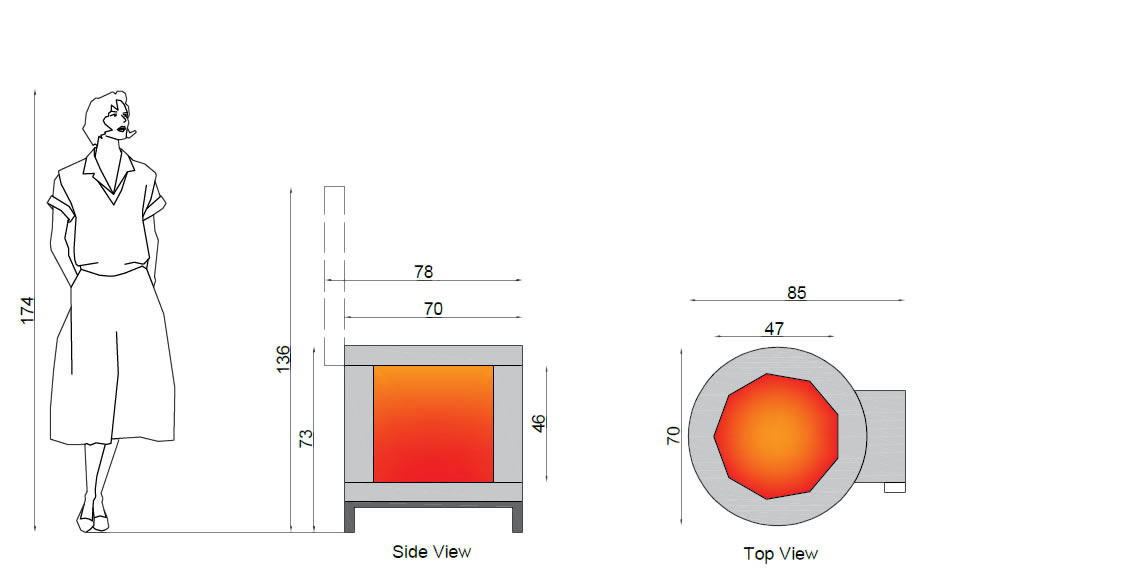

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK80L	1200	5.5 kW	1 phase	35A	220 1P+N+E 35A
MK80L	1200	5.5 kW	3 phases	16 A	220 3P+N+E 16A
MK80M	1250	6.5 kW	1 phase	35A	220 1P+N+E 35A
MK80M	1250	6.5 kW	3 phases	16 A	220 3P+N+E 16A
MK80H	1300	6.5 kW	1 phase	35A	220 1P+N+E 35A
MK80H	1300	6.5 kW	3 phases	16 A	220 3P+N+E 16A

Type MK100

Int. Dimensions:
Diameter 52 cm X Height 46 cm
Volume: 98 Litres
Weight: 120 Kgs

Maximum Temperature:
1200C - Model: MK100L
1250C - Model: MK100M
1300C - Model: MK100H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ⬤◖ Diam. 49cm
Useful height: 43 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK100L	1200	6.5 kW	1 phase	35A	220 1P+N+E 35A
MK100L	1200	6.5 kW	3 phases	16 A	220 3P+N+E 16A
MK100M	1250	8 kW	3 phases	20A	220 3P+N+E 20A
MK100H	1300	8 kW	3 phases	20A	220 3P+N+E 20A

Type MK120

Int. Dimensions:
Diameter 58 cm X Height 46 cm
Volume: 122 Litres
Weight: 125 Kgs

Maximum Temperature:
1200C - Model: MK120L
1250C - Model: MK120M
1300C - Model: MK120H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ◖ Diam. 53.3cm
Useful height: 43 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

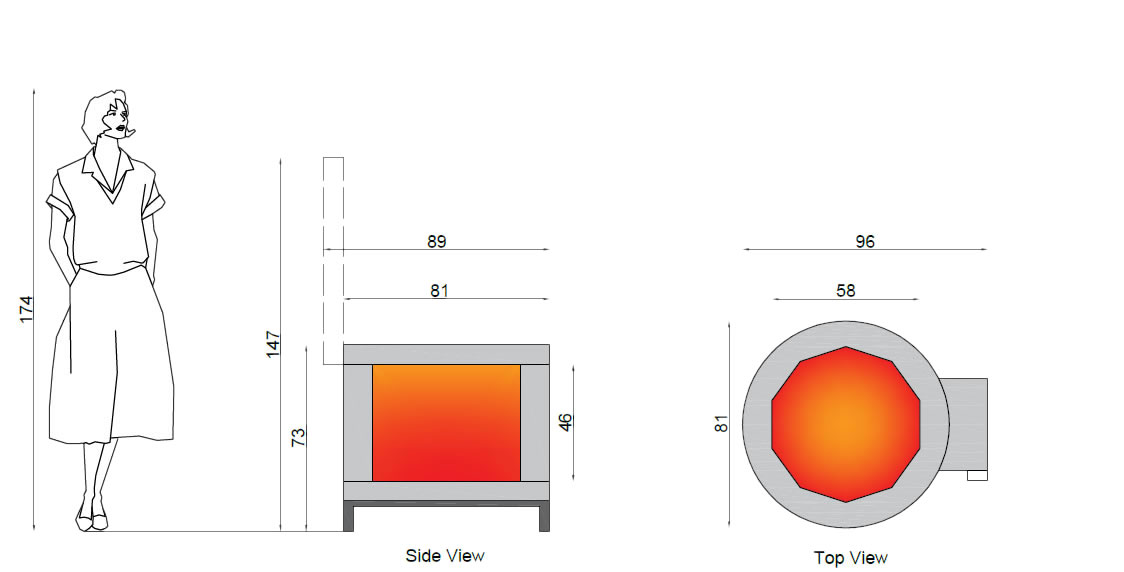

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK120L	1200	8 kW	3 phases	20A	220 3P+N+E 20A
MK120M	1250	9 kW	3 phases	20A	220 3P+N+E 20A
MK120H	1300	9 kW	3 phases	20A	220 3P+N+E 20A

Type MK155

Int. Dimensions:
Diameter 58 cm X Height 58 cm
Volume: 153Litres
Weight: 140 Kgs

Maximum Temperature:
1200C - Model: MK155L
1250C - Model: MK155M
1300C - Model: MK155H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ◖ Diam. 53.3cm
Useful height: 55 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

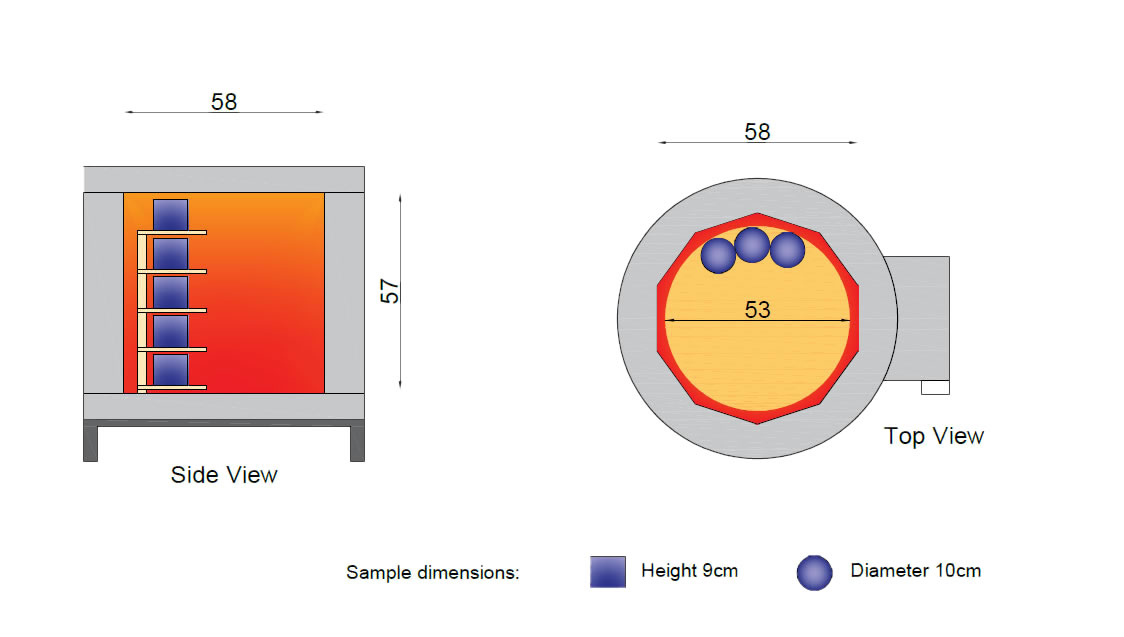

Capacity drawing

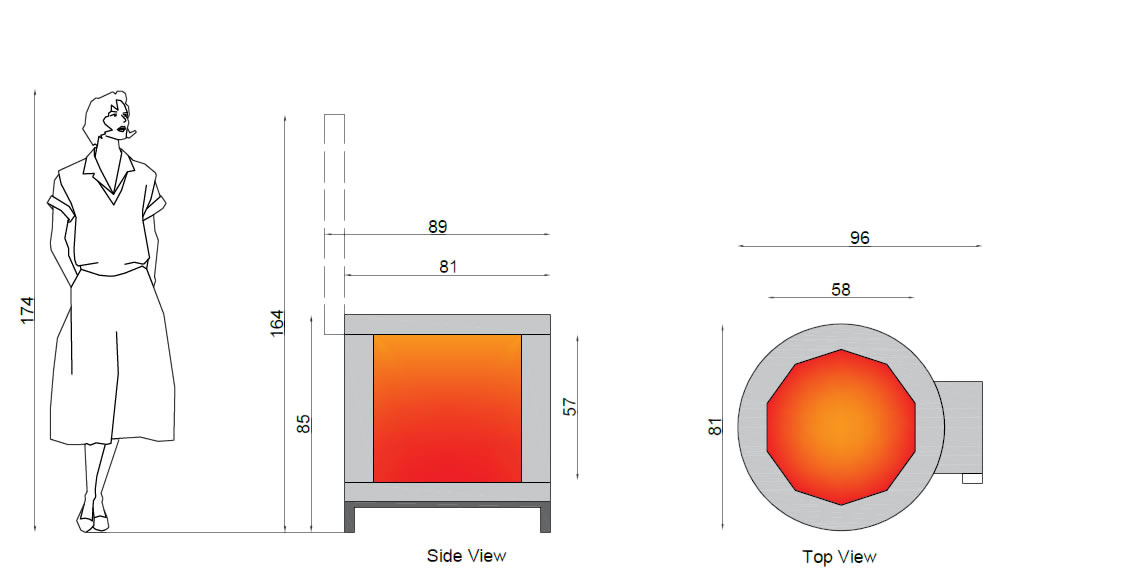

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK155L	1200	9 kW	3 phases	20A	220 3P+N+E 20A
MK155M	1250	10.5 kW	3 phases	20A	220 3P+N+E 20A
MK155H	1300	10.5 kW	3 phases	20A	220 3P+N+E 20A

Type MK150

Int. Dimensions:
Diameter 52 cm X Height 69 cm
Volume: 147 Litres
Weight: 150 Kgs

Maximum Temperature:
1200C - Model: MK150L
1250C - Model: MK150M
1300C - Model: MK150H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ⬤◖ Diam. 49cm
Useful height: 66 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK150L	1200	9 kW	3 phases	20A	220 3P+N+E 20A
MK150M	1250	10.5 kW	3 phases	25A	220 3P+N+E 25A
MK150H	1300	10.5 kW	3 phases	25A	220 3P+N+E 25A

Type MK185

Int. Dimensions:
Diameter 58 cm X Height 69 cm
Volume: 182 Litres
Weight: 160 Kgs

Maximum Temperature:
1200C - Model: MK185L
1250C - Model: MK185M
1300C - Model: MK185H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ◖ Diam. 53.3cm
Useful height: 66 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK185L	1200	10.5 kW	3 phases	25A	220 3P+N+E 25A
MK185M	1250	11.5 kW	3 phases	25A	220 3P+N+E 25A
MK185H	1300	11.5 kW	3 phases	25A	220 3P+N+E 25A

Type MK230

Int. Dimensions:
Diameter 65 cm X Height 69 cm
Volume: 229 Litres
Weight: 180Kgs

Maximum Temperature:
1200C - Model: MK230L
1250C - Model: MK230M
1300C - Model: MK230H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ◖ Diam. 58.4cm
Useful height: 66 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK230L	1200	13 kW	3 phases	35A	220 3P+N+E 35A
MK230M	1250	14.5 kW	3 phases	35A	220 3P+N+E 35A
MK230H	1300	14.5 kW	3 phases	35A	220 3P+N+E 35A

Type MK320

Int. Dimensions:
Diameter 76 cm X Height 69 cm
Volume: 314 Litres
Weight: 210 Kgs

Maximum Temperature:
1200C - Model: MK320L
1250C - Model: MK320M
1300C - Model: MK320H

Delivery time: 2 weeks

Capacity:
Kiln shelf: ◖ Diam. 67.3cm
Useful height: 66 cm
(base shelf and supports excluded)

Top load ceramic kilns
Technical Specification Sheet

Capacity drawing

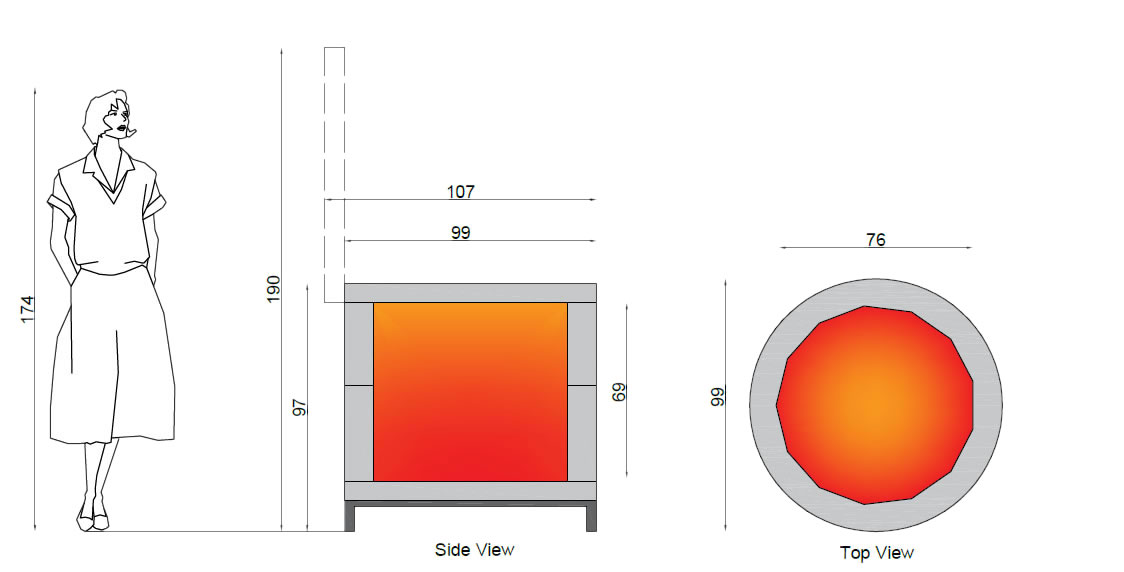

Dimensions drawing

Energy:

Model	T Max	Power	Supply	Fuse	Plug
MK320L	1200	16 kW	3 phases	35A	220 3P+N+E 35A
MK320M	1250	17.5 kW	3 phases	35A	220 3P+N+E 35A
MK320H	1300	17.5 kW	3 phases	35A	220 3P+N+E 35A

Custom Size Kilns

We are able to offer suggestions and solutions for kilns that will perfectly meet your personal needs (space constraints & features, production capacity, special applications etc.).
The specialized technical staff of the company will design and build the perfect kiln for you. Inventiveness and continuous research have brought to our company 5 registered patents.

Kiln Furniture

Kilns are provided with the necessary fireplates and supports. Quantity and sizes can be altered according to your personal needs, and products, since each workshop has different needs.

Technical Support

Our company has an organized and fully equipped customer Service and Support department.
Our experienced and specialized technical staff provide responsible and immediate technical support.
Our many years of experience and our direct, daily contact with end-users enable us to provide reliable and immediate consulting on kilns operation as well as on firing, and material issues.
Counseling and Technical Support are available 7 days a week.

Spare Parts

All kilns are manufactured by our company in Greece. We have a complete stock of raw materials and spare parts, which are shipped directly anywhere in the world.
